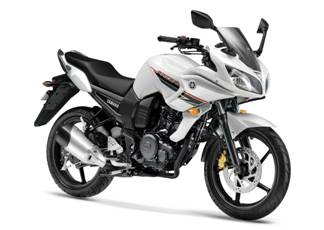

YAMAHA FAZER
Engine type |
Air-cooled, 4-stroke, SOHC, 2-valve |
Displacement |
153.0 cc |
Compression ratio |
9.5:1 |
Maximum power |
14PS @ 7500 rpm |
Maximum torque |
13.6 Nm @ 6000 rpm |
Starting system |
Electric & Kick start |
Fuel tank capacity |
12 litres |
Lubrication type |
Wet Sump |
Fuel Supply |
Carburetor |
Transmission type |
Constant mesh 5-speed |
Clutch type |
Wet, multiple-disc |
Cylinder Layout |
Forward-inclined Single cylinder |
Bore × Stroke |
58.0 × 57.9 mm |
Battery |
12 V, 5.0 AH (10H) |
Gear ratios |
1st=2.714, 2nd=1.789, 3rd=1.318, 4th=1.045, 5th=0.875 |
Primary / Secondary reduction ratio |
3.409/2.857 |
Frame type |
Diamond |
Brake type(front/rear) |
disc / drum |
Headlight |
12V, 35/35W |
Caster / trail |
25 degree/ 101 mm |
Tyre size (front/rear) |
100/80-17 / 140/60-R17 |
Suspension (front/rear) |
Telescopic/ Monocross |
Frame type |
Diamond |
Overall Length × Width × Height |
2,075mm × 761mm × 1,119mm |
Seat height |
790mm |
Wheelbase |
1,334mm |
Minimum ground clearance |
160mm |
Kerb weight |
141 kg |
