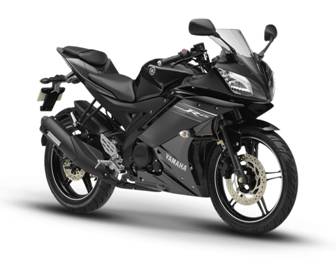

YAMAHA YZF R-15



Engine

 Engine type

 Liquid-cooled, 4-stroke, SOHC, 4-valve

 Cylinder arrangement

 Single cylinder

 Displacement

 149.8cc

 Bore & Stroke

 57 × 58.7mm

 Compression ratio

 10.4:1

 Maximum power

 17PS/ 8,500rpm

 Maximum torque

 15N.m / 7,500rpmm

 Starting system

 Electric start

 Lubrication

 wet sump

 Fuel tank capacity

 12 liters

 Fuel supply system

 Fuel Injection

 Ignition system

 T.C.I

 P rimary / Secondary reduction ratio

 3.042 / 3.133

 Clutch type

 Wet Multiple-disc

 Transmission type

 Return type 6-speed

 Gear ratios

 1st=2.833, 2nd=1.875, 3rd=1.364, 4th=1.143,  5th=0.957, 6th=0.84

Chassis

 Frame type

 Delta box

 Caster / Trail

 26° / 98mm

 Tire size (Front / Rear)

 90/80-17 / 130/70-R17

 Brake type (Front / Rear)

 Hydraulic, single disc (Front / Rear)

 Suspension type (Front / Rear)

 Telescopic / Linked type Monocross

 Headlight

 Lo beam12V/35W X1, Hi beam12V/35W X2

 Battery

 12V, 3.5Ah (10H)

dimensions

 Overall length x width x height

 1,970mm x 670mm × 1,070mm

 Seat height

 800mm

 Wheelbase

 1,345mm

 Minimum ground clearance

 160mm

 Kerb weight

 136Kg
